Desmontaje de la bola de desplazamiento del Mighty Mouse de Apple

Escrito Por: Alex Jansen
  • Comentarios: 53
Desmontaje de la bola de desplazamiento del Mighty Mouse de Apple

Dificultad

Difícil

Pasos

9

Tiempo Requerido

30 minutos - 1 hora

Introducción

Un problema común con los poderosos ratones es que la suciedad entra en el ensamblaje de la bola de desplazamiento y hará que el desplazamiento sea extremadamente molesto. Hay otras soluciones como lavar la bola con alcohol isopropílico y usar esto para limpiar los rodillos, pero me pareció mucho más efectivo atacar el problema desde la raíz. Supongo que esta guía funcionaría libremente para la versión USB, aunque no lo he intentado.

  1. X2MSkBZHKZX2PR36

    • Antes de continuar, apaga el mouse usando el interruptor deslizante debajo del mouse.

    • Antes de desarmar el mouse, primero intenta frotar la bola del mouse con un cepillo de dientes y alcohol isopropílico. Asegúrate de colocar las cerdas entre la bola y la carcasa, ya que esto ayudará a eliminar la suciedad y el polvo que obstruyen los rodillos en el interior.

    • También puedes intentar soplar en el "agujero de la bola" con una lata de aire comprimido.

  2. WQqp35VbY4vQrPcP
    WQqp35VbY4vQrPcP
    lExGS3YZseUVDh4H
    a5DE5OsgGwnnHL5H

    • Comienza volteando el mouse, como se muestra.

    • Retira el panel inferior empujando el pestillo de liberación hacia abajo y hacia la izquierda.

    • Es posible que debas hacer palanca en el borde del panel inferior en el área indicada.

    • Retira las baterías.

  3. vE5VEEPFXEEMMMkV
    vE5VEEPFXEEMMMkV
    xNDQHwEpPbLKKnVi

    • Inserta el spudger entre el botón y el anillo blanco exterior.

    • Gira el spudger para separar el anillo del cuerpo del ratón. Trabaja el spudger alrededor de todo el mouse hasta que el anillo se desprenda por completo.

    • Debes usar un poco de fuerza para romper el adhesivo que mantiene el anillo en su lugar, pero trata de no romper el anillo de plástico.

    • Tendrás que volver a pegar este anillo al cuerpo del ratón cuando lo vuelva a montar. El adhesivo de cianoacrilato funciona bien.

    I found this step to be easier when starting at the side buttons as pictured, working around the back of the mouse to loosen the back half of the ring, and then carefully prying the front portions of the ring, which seem to have the most adhesive that you need to loosen. If you get stuck or the rings starts to bend from one direction, resume on the other side.

    Rog -

    While a little bit dangerous, I used an Exacto knife to cut through the adhesive. A slight rocking motion does the trick. Just be sure you don’t have a body parts between the knife edge and the hard surface you’re using to steady the mouse.

    Dennis Johnston -

  4. 1QVvqtEIO1xrmxLH

    • Deshacer dos clips con un spudger.

    • Del mismo modo, usa el spudger para desenganchar dos puntos de pivote.

  5. g4sAIj1nuPlLLea3

    • Separa con cuidado las dos mitades; no tires de los cables flexibles.

  6. QSTsPrawxJsVJXmB
    QSTsPrawxJsVJXmB
    MUMa6LHTTueQBbhN

    • Desbloquea suavemente los pestillos con una uña o un spudger. No fuerces el pestillo, o podría romperse.

    • Desconecta ambos cables flexibles.

    • La segunda foto muestra hasta dónde tirar de los pestillos.

    • Al volver a montar el mouse, ambos cables deben insertarse en los conectores con el contacto hacia arriba.

    The latches referred to are on the able connection block. The blocks are white, the latches are grey. Push the sides of the grey latches with any small flat screw driver or spudger.

    Dennis Johnston -

  7. yEVnYwpmHlsuxXr6
    yEVnYwpmHlsuxXr6
    TKWoUKam2gIXwCAf

    • Quita los tres tornillos Phillips n.° 00 que sujetan el ensamblaje de la bola de desplazamiento a la cubierta superior.

  8. xNZhfYhVZGGcJb31

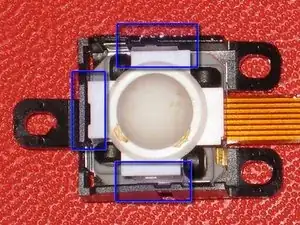

    • Saca la cubierta de la bola blanca de la carcasa negra con un destornillador pequeño de cabeza plana.

    • Hay pequeñas piezas sueltas en el Conjunto, ten cuidado al quitar la tapa. Las pequeñas ruedas magnéticas son especialmente fáciles de perder.

  9. neXFWM1CeB6cqmCa

    • Retira los cuatro rodillos de la carcasa negra con unas pinzas. Se mantienen en su lugar magnéticamente.

    • Limpia todas las piezas con alcohol isopropílico, déjelas secar y vuelve a montar el dispositivo.

    • Al volver a montar el conjunto, los rodillos se colocan de nuevo con el extremo de la rueda trasera tocando las lengüetas de metal.

    Abou 2 years ago I have followed these instructions to clean my mouse and everything was perfect. But now I tried this procedure again, but the mouse ball isn't working anymore. I thought I had the flat cables in the wrong position, and then I checked it, and I think they are in the correct position. The photos are small and I cannot be sure the position of the flat cables are correct. I would like to know how can I check this. What is the correct side to insert these flat cables? I'm sure I close the ball box correctly and it's running smooth inside it.

    sergio barrozo -

    Be careful : the little black wheels don’t touch the metal tabs.

    Henri Guillemot -

Conclusión

Para volver a armar tu dispositivo, sigue estas instrucciones en orden inverso.
