LED de diagnóstico del iMac Intel 24" EMC 2134 y 2211

Escrito Por: Richdave
  • Comentarios: 54
LED de diagnóstico del iMac Intel 24" EMC 2134 y 2211

Dificultad

Moderado

Pasos

7

Tiempo Requerido

15 minutos

Introducción

Los iMac de 24 pulgadas de 2007 y 2008 tienen cuatro LED de diagnóstico en la placa lógica que pueden ayudar a solucionar problemas en la computadora. Se requiere un pequeño desmontaje para ubicar y observar los LED. Esta guía se basa en información procedente del manual de servicio de Apple correspondiente.

**La interpretación de LED también se aplica a iMac Intel 20" EMC 2133 y 2210**

  1. kKHOYvEWyQqv2ikT

    • Afloja el único tornillo Phillips en el centro de la puerta de acceso.

    • Este tornillo es imperdible en la puerta de acceso.

    • Retira la puerta de acceso de tu iMac.

    PH2 head necessary to remove screw.

    airshack -

  2. LnOEmYPxI5PBIQJY
    LnOEmYPxI5PBIQJY
    HqUOYlGhDnRbRBOu

    • El panel de vidrio se fija al bisel frontal con catorce imanes alrededor de su perímetro.

    • Pega dos ventosas en las esquinas opuestas del panel de vidrio.

    • Para colocar las ventosas que vendemos, primero coloca la ventosa con el mango móvil paralelo a la cara del panel de vidrio. Mientras sostienes suavemente la ventosa contra el vidrio, levanta la manija móvil hasta que quede paralela con la otra manija.

    • Si tus ventosas se niegan a adherirse, intenta limpiar tanto el panel de vidrio como la ventosa con un solvente suave como Windex.

    Save $15 dollars and use a plunger. Works perfectly.

    Michael Ybarra -

    Even better and more elegant: go to a household shop and buy two transparent plastic bathroom baskets with two suction cups each. I found them in Xenos in the Netherlands (maybe also in Germany).

    freed -

    Perhaps not so elegant but equally effective without any adverse effects to either... try a vacuum cleaner.

    Andrew Dobson -

    The same kind of suction cups are available from Harbor Freight Tools (Item # 62715) for $2.99 each or $5.98/pair (plus sales tax).

    Bob Atkinson -

  3. wOWEkQRIZSmjoKvF

    • Tira con cuidado del panel de vidrio hacia arriba del iMac.

    • El panel de vidrio tiene varios pines de posicionamiento alrededor de su perímetro. Para evitar cortar estos pasadores del panel de vidrio, asegúrate de tirar solo hacia arriba durante la extracción.

    • Sea meticuloso al limpiar la pantalla LCD y la cara interior del panel de vidrio antes de la reinstalación, ya que las huellas dactilares o el polvo atrapado en el interior serán molestos y visibles cuando la pantalla esté encendida.

    The glass panel is somewhat thin and should come away quite easily without much force so be gentle.

    adamngordon -

    Just an FYI - my glass panel did not line up perfectly when reinstalled. Off by just 1mm. May take another attempt at it later, but does not interfere with the iSight camera. Only someone with an eagle-eye (like me) will notice it's not perfect.

    ajpfl -

    To reinstall the glass, I lined up the bottom edge first, then pivoted the top in. The magnets pulled it quickly into place.

    Magnus Dalen -

    I didn't want to use such small suction cups.. so I got suction bathroom handles from Home Depot. Very sturdy and to me, safer choice.

    Gail -

  4. i6BdeS3QfJubxadY
    i6BdeS3QfJubxadY
    ATHWFOwiJdtSYyum

    • Retira los siguientes 12 tornillos que sujetan el bisel frontal a la carcasa trasera:

    • Ocho tornillos Torx T8 de 13 mm

    • Cuatro tornillos Torx T8 de 25 mm

    • Es posible que tengas tornillos de diferentes longitudes según tu modelo:

    • Seis tornillos Torx T8 de 13 mm

    • Cuatro tornillos Torx T8 de 25 mm

    • Dos tornillos Torx T8 de 35 mm

    I only had two 25 mm T8 Torx on my model. (The two inner orange circles as shown in the diagram.)

    stevejansen -

    I don't know if this is different but i am in the process of disassembling a 24' imac emc: 2134. i have only: (2) 25 mm T8 screws the inner two on the bottom of the screen. I have (4) 13 mm t8 screws the outer most holes on the bottom and the 2 holes on the right side of the monitor above the drive entrance and the remaining holes are (6) 11 mm t8 screws

    ccarter314 -

    I have the same screws as ccarter on a 2211 except on the bottom row there are only 4 screws total, the longer ones go in the middle two.

    maccentric -

    The Torx set I bought from ifixIt is well worth the money. My screw heads in this step were T9 not T8. THe T8 bit was too sloppy in the screwhead and there was a risk of rounding the slots. Having the option to go a size-up was perfect.

    Troy -

    My 2211 has a different screw configuration.

    2 - 32mm long screws towards the middle of the bottom edge

    4 - 18mm long screws (2 at the corners of the bottom edge and 2 along the right edge)

    6 - 13mm screws along top and left edges

    christian -

    Mine is the same — two very long, four medium, and six short. Also my T9 worked better than my T8 which was a bit loose.

    johann beda -

    I have the same screws as Christian. The key is to make sure all screws are flush to the surface, so that the glass can be held up by the magnets.

    Kelvin Lau -

    On mine, for the red circles, I had the six 13mm Torx plus two 25mm Torx. It's not indicated in the picture here, but the 25mm Torx went on either side of the optical drive.

    JD Fox Micro -

    I marked next to each hole with a pencil "S, M or L" to indicate which length screw goes where. No guess work on reassembly.

    Magnus Dalen -

    I dropped my screwdriver on the lcd and nicked it. :(

    hewsey -

  5. OKTJoZ3T2TX2RBMP
    OKTJoZ3T2TX2RBMP
    NAuKQkjbMXru3q5Y

    • El bisel frontal todavía está conectado al iMac por el cable del micrófono.

    • Levanta con cuidado el bisel frontal desde el borde superior de la carcasa trasera. Es útil usar los pulgares para empujar hacia abajo muy suavemente en las esquinas de la pantalla.

    • Una vez que el borde superior del bisel frontal haya salido de la carcasa trasera, gira el bisel delantero hacia el soporte y levántalo de la carcasa trasera.

    • Cuando vuelvas a instalar el marco frontal, comienza en el borde inferior y asegúrate de que esté al ras con la carcasa trasera antes de bajar el borde superior sobre el iMac.

    The microphone cable must be disconnected BEFORE rotating the bezel towards the stand.

    Also, the bezel covers the sides of the case, not just the front. This isn't obvious from the pictures.

    wallace -

    Looking at the meaning of the LEDS

    i've got 3 LEDS on but i don't get a chime or the screen.

    i am going to check the inverter voltages but can only find info for the 20" macs iMac Intel 20" EMC 2210 Power Supply Output Voltage Test

    does anyone know where i can get info for the 24"

    samraby -

    i have the same thing, 3 LEDs on but no chime and no screen.

    what is the fix? and problem?

    Bill -

    I'm in the same position. 3 LED's, No chime, no life in the screen, Optical drive starts up but no other signs of life i.e.:fans also don't start up.....

    Any guidance would be greatly appreciated!!

    Dominik -

  6. hOeFeOWv1UYq2nCp

    • Desconecta el conector del cable del micrófono, quitando la cinta según sea necesario.

    • Para que el bisel frontal se asiente correctamente, asegúrate de colocar el cable del micrófono y el conector en el espacio vacío junto a la placa de la cámara.

    I didn't disconect the cable. I was working on a large table that allowed me to carefully flip the bezel upside down and rest it that way with the cable connected through the entire process.

    fulker -

    I also skipped disconnecting the microphone cable. I have a large table and I stacked some books next to the iMac. There was plenty of cable for the bezel to fold nicely over the top of the iMac.

    mikkorongas -

    I needed to move the bezel away, so disconnected the cable. On reassembly found that the pins had pulled out of the plastic housing. Need to know orientation of the 3 wires in the housing.

    prreitz -

    I used the floor instead of a table and left the cable connected.

    Frank Carrano -

  7. EAFGe3EPwQRM16RE

    • Para observar los LED, debes encender el iMac con el bisel frontal apagado. Asegúrate de no tocar ninguna parte de la iMac o las placas de circuito expuestas mientras tengas la alimentación conectada.

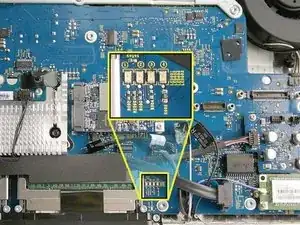

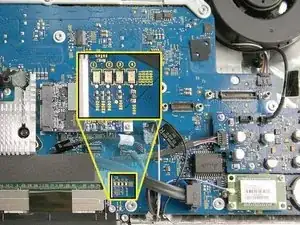

    • Localiza los LED de diagnóstico entre las ranuras de RAM y el conector SATA.

    • Los LED están numerados del 1 al 4 de izquierda a derecha. Es posible que debas mover el cable SATA para obtener una vista clara de los LED.

    • Si estás utilizando esta guía para iMac Intel 20" EMC 2210 y 2133, los LED están ubicados sobre el conector SATA y no son tan visibles.

    • LED 1: indica que la placa lógica principal detecta el voltaje lento de la fuente de alimentación. Este LED estará ENCENDIDO mientras el iMac esté conectado a la CA. El LED estará encendido incluso cuando la pc se apague o se suspenda. El LED se apagará solo si la CA está desconectada o si la fuente de alimentación está defectuosa.

    • LED 2: indica que la placa lógica principal ha detectado la alimentación adecuada de la fuente de alimentación cuando se enciende la computadora. Este LED estará ENCENDIDO cuando la computadora esté encendida y la fuente de alimentación funcione correctamente.

    • LED 3: indica que la pc y la tarjeta de video se están comunicando. Este LED estará ENCENDIDO si la computadora se esté comunicando correctamente con la tarjeta de video. Si los LED 1 y 2 están ENCENDIDOS y escuchaste el sonido de inicio, pero el LED 3 está APAGADO, es posible que la tarjeta de video esté mal instalada o necesite reemplazo.

    • LED 4: indica que la pc y el panel LCD se están comunicando. Este LED estará ENCENDIDO cuando la pc esté encendida y se esté generando la señal de video. Si el LED está ENCENDIDO y no hay imagen en el panel de la pantalla LCD, es posible que el panel de la pantalla LCD o el inversor estén instalados incorrectamente o necesiten reemplazo.

    I have LED 1,2 and 3 lighting up, LED 4 is off. Does that indicate a videocard issue?

    nbeijer -

    3 leds appear to be the correct status - LED power supply and logic board tests

    Gwyn Evans -

    Hi friend, Your model is 24” a1225 emc2211? I have exactly the same problem...

    According to the led test it is a problem of the connection of the display or the video card, but I am almost sure that it is power supply, Did you find any solution?

    Victor -

    LED 1 lights when I plug in the power. As soon as I touch the power button, LED 1 goes off, and nothing else. All LEDs are off. Unplug and replug and LED 1 lights. This indicates there's no problem with the power supply.

    I'm fixing the oft-defective NVIDIA GeForce 8800 GS GPU. I reflowed the GPU and am in the process of seeing if the reflow worked. Before disassembly, the machine could turn on. Now nothing. During the process, I cracked the connector on the power inverter cable that goes from the power supply to the back of of the display.

    In my interest to get my iMac together, I placed the single dangling wire on its pin, then placed the two intact sides of the inverter connector on either side. (Gluing the connector together just didn't work.) I plan to order a replacement cable as soon as I can.

    Could this wonky cable connection cause the whole system to not function? I think it could, but thought I'd ask. Any other thoughts or gotchas from people who've done this type of work?

    walkingwired -

    Ok, display is black, I have led #1 lit when power is connected, led #2 comes on and stays on when power button is pressed, the fans come on, it checks the optical drive, I hear faint hard drive noise, but led #3 & led #4 do not come on. And I do not get a startup sound. What would this indicate?

    ferglesharky69 -

    Any update on this? I seem to be having the same problem.

    Hieu Nguyen -

    2008 24" iMac EMC 2211 Model 8,1 no power. I removed bezel and looked for Led lights. Non lit up. I'm thinking power supply? Thoughts. Video card? Thanks in advance.

    harley24052000 -

    it’s possible, I have the same issue. The #1 light is on when plugged in but soon as I press the power button it is gone….then no lights at all. Let it sit for 10 minutes plug it back in …no lights …nothing. I think maybe the power supply. I don’t think you can tell if it’s anything else like the logic board unless you have a known working power supply.

    QuickTech -

    I removed my screen to put in a hdd but after i put lcd back the forth light didnt come on, no display or start up tone.. cant work it out!?

    airbrushkits -

    Hi, I have a similar problem? Did you solve it?

    Daniele Sforza -

    On A1224 iMac i have LED 1 On. When I press power switch, led 2 turns on, but nothing more happens. I have not power on sound and fans do not turn on. What do you think is the issue? Videocard issue?

    Jorge Yerbito -

    I have light one come on stays on as long as the power cords plugged in light to stays on as soon as it boots or whatever and it makes a sound like 3 stays on but light for does not come on and I have nose thing on my screen but the screen works great prior to me upgrading the paste on my GPU and CP

    Clark Heisler -

    I get all four lcd lights on but nothing shows up on the lcd panel. Is there a way to test if it the panel or the inverter ?

    Kyle -

    Chances are you have a bad Lcd. They have fluorescent tubes that make the screen light up. Try a very high powered flash light to check for an image. If you see an I make chances are you need a new Lcd panel.

    mamashannon4u -

    I had this issue with an old iMac that stood for ages and the onboard battery ran flat. Replaced it and the machine powered on but no beeps or display. 4th LED was off. Only once I had it apart I tried various RAM combinations and got the bong with that. Re-connected everything and all good, including the 4th LED and display. Check the ram with known good RAM and try a few times.

    Alistair Wallis -

    It was the battery! Completely dead iMac A1225 EMC 2134. Was about to recycle it but figured I’d try this tutorial. I initially had just LED 1 green- and then none when I hit the power button. I replaced the PRAM battery and instant Bong and full boot up with 4 LEDs! Thank you for this great tutorial- I would simply add to replace the battery before doing anything major like a power supply.

    Kupe -

Conclusión

Para volver a armar tu dispositivo, sigue estas instrucciones en orden inverso.
