Reemplazo del sensor de velocidad, Honda Accord 1998-2002 (manual 2.3L I4)

Escrito Por: Miroslav Djuric
  • Comentarios: 26
Reemplazo del sensor de velocidad, Honda Accord 1998-2002 (manual 2.3L I4)

Dificultad

Moderado

Pasos

7

Tiempo Requerido

30 - 45 minutos

Introducción

Si el velocímetro de tu Honda Accord '98 - '02 no está funcionando bien, o no funciona en absoluto, el sensor de velocidad de tu vehículo puede estar dañado o roto. Utilice esta guía para reemplazar el sensor de velocidad de tu vehículo dañado.

  1. bffETOtxxOOK5JBc
    bffETOtxxOOK5JBc
    2YSgrEIQaQRhv6Dq
    ltTgESOwAAfxadfj

    • Tira de la palanca de liberación del capó (cubierta del motor), justo dentro de la puerta del piloto para abrir el capó.

    • Localiza el seguro de liberación del capó debajo del capó. Usa una mano para presionar el seguro mientras levanta el capó.

    • Coloca la varilla de apoyo del capó en el orificio del capó marcado con una flecha.

  2. 1HsEIKEtIFJQFOgy
    1HsEIKEtIFJQFOgy
    vIMMCgoipyVhNWuI
    RdxlVNrAxfmSo6XD

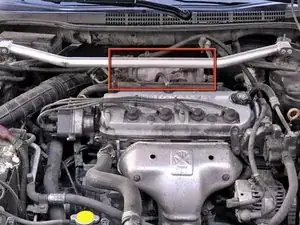

    • Localiza la unidad de entrada de aire del motor en la parte trasera del motor.

    • Localiza el tornillo de la abrazadera de la manguera, que sujeta la manguera de admisión de aire, de la unidad de admisión de aire del motor.

    • Afloja el tornillo y la abrazadera de la manguera, con un destornillador Phillips n.° 2, girando el tornillo en sentido contrario a las agujas del reloj hasta que el tornillo ya no sobresalga de la abrazadera de la manguera.

  3. iYGkYDS2QwdbLnI3

    • Usa un par de alicates para deslizar la abrazadera de la manguera fuera del tubo, este conecta el respiradero de la cubierta de la válvula a la manguera de entrada de aire.

  4. IrFU1wueYtaYZGXt
    IrFU1wueYtaYZGXt
    rSBKRvCpRjYjvtVy
    u3PZTvxDXHO66SWG

    • Retira la manguera de admisión de aire, de la unidad de admisión de aire del motor.

    • Separa la manguera de entrada de aire y la manguera del respiradero de la cubierta de la válvula hasta quedar libre.

    • Dobla la manguera de entrada de aire para que haya un camino de fácil acceso por debajo de la entrada de aire del motor y la parte trasera del motor.

    • Si el tubo no puede flexionarse lo suficiente, como para no estorbar, puede ayudar o ser útil separar el otro extremo del tubo de la caja de aire y quitarlo por completo.

    NOTE: Remove the small clamp from the intake hose before moving the tube out of the way, you run the risk of losing the clamp down in the engine compartment.

    Smitty Smith -

  5. LG2RlvD1dIL6MspB

    • Mira detrás del motor, casi directamente debajo de la unidad de admisión de aire del motor, y ubica el sensor de velocidad del vehículo.

    • Localiza el perno hexagonal de 12 mm del sensor. El perno está un poco más atrás, y hacia el lado del conductor, en relación con el conector del sensor de velocidad del vehículo.

    If you use a socket, make sure it is a 6 point so you will not round off the nut. Also, don’t forget to check the wires for stress on the insulation or wires pulled from the connector, they will need to be repaired before replacement of the connector on the new part.

    Smitty Smith -

  6. I6SLWQBLwimWgHCY
    I6SLWQBLwimWgHCY
    GMB2AEfhrG5slgDF
    aEGrMYYC32TM5UBQ

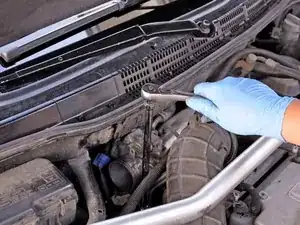

    • Guía un dado de 12 mm con extensión de 10", hacia abajo sobre el perno.

    • Necesitarás trabajar con cuidado el dado y las extensiones entre los cables y las mangueras, teniendo cuidado de no ejercer demasiada tensión sobre ellos.

    • Gira el perno en sentido contrario a las agujas del reloj, hasta que se desenrosque por completo.

    • Retira el perno del compartimiento del motor.

  7. K1iJIArbEDjdpeSj
    K1iJIArbEDjdpeSj
    Zw2JA1usZseZsRoF
    FbsKJuHXVaEAVbKI

    • Retira el sensor de velocidad del vehículo de su orificio.

    • Tener cuidado de no golpear demasiadas piezas al retirar el sensor, ya que puede desprender residuos a la transmisión, lo que puede causar un desgaste prematuro o una falla.

    • Para evitar el riesgo de dañar los cables, no tires del sensor por los cables.

    • Desconecta el sensor del arnés de cableado, presionando la pestaña gris en la parte superior del conector del arnés, y separando el conector y el sensor.

    • Retira el sensor del compartimiento del motor.

    • Al instalar el nuevo sensor de velocidad del vehículo, ten cuidado de no introducir residuos a la transmisión, ya que es probable que el área alrededor del orificio esté muy sucio.

    The Speed Sensor is definitely on the top of the transmission, back of the engine, on the passenger side. A little harder to see than the photos suggest. Everything after all these years was not coming apart easily. This guide made the whole process very doable. A flathead screw driver under the arm to the bolt hole helped get the sensor out. When tightening the Sensor bolt it’s listed at 13ft lbs / 18Nm. My Speedometer works again, along with my odometer and cruise control. Awesome Thank you.

    queenieamerica -

Conclusión

Para volver a armar tu dispositivo, sigue estas instrucciones en orden inverso, o del último paso al primero.
