Sustitución de la unidad de Blu-ray de una PlayStation 3.

Escrito Por: Brett Hartt
  • Comentarios: 45
Sustitución de la unidad de Blu-ray de una PlayStation 3.

Dificultad

Moderado

Pasos

16

Tiempo Requerido

45 minutos - 1 hora

Introducción

Utiliza esta guía para cambiar una unidad de Blu-Ray que esté fallando o rota de tu PlayStation 3. Esta guía te enseña solamente a cambiar la unidad de Blu-ray original, KEM-400.

  1. XC4PojAakGaJAFNl
    XC4PojAakGaJAFNl
    w6MZgkkapHlYZyjY

    • Utiliza la punta de una espátula para quitar la pata de goma negra que esconde un tornillo, esta se encuentras en el lado de tu PS3.

    • La pata de goma puede estar debajo de una pegatina de garantía. Si la despegas, esta mostrará "VOID" después de quitarla. (Lo que anulará la garantía).

    Fake repair. Real fault: How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

    Player -

  2. oshv21lAV45JYI3H

    • Quita el tornillo de 8.5mm T10 Tor de seguridad de la smart plate.

    How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

    Player -

    I need a tork screw bracket / holder A/E/B/E01- MG and security torx screw for a CECH-AO1 do u guys sell these?

    vuhx -

  3. vT35crSssXRtUiCa
    vT35crSssXRtUiCa
    Hq6BfirJtZsLRxlL
    1HexXRWUkCZGc3fT

    • Tira de la smart plate hacia la bahía del disco duro, después levántala del cuerpo de la PS3.

    How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

    Player -

  4. bGm1uV3D5RH6tHdi

    • Asegúrate de no perder de vista el raíl metálico en caso de que esté equipado en la carcasa superior.

    That small metal bracket/socket set up looks completely different in the ps3 I'm working on. Model: CECHK01.

    Any suggestions?

    Marcus -

    different in mine too, Model: CECHP01

    Link Adrian -

    mine does not have one at all

    ian.downard01 -

    1How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

    Player -

    Did not find in my CECHH01

    Philippe Morin -

  5. XRh3WC3LKEbh42KV

    • Quita los siete tornillos siguientes:

    • Seix tornillos Phillips de 52mm.

    • Un tornillo Phillips de 30mm.

    2 more smaller screws (don't know what size...small) just below the top middle screw and top right screw (in the picture). Look for the arrows...

    E Goo -

    can confirm, might be the backwards compatibles only

    Jordan Giese -

    after you remove the screws, you may have to push a tab to take the cover off if you meet resistance on one side of the cover. Here is a link to a video that explains it, saved me lots of trouble:

    http://youtu.be/jZgekNsRB-A?t=1m54s

    ericksi33 -

    Thanks @ericksi33, this really helped me out.

    hogurt -

    1st attempt, fan loud. Ps3 lasted about 2 wks. 2nd attempt noticed very poor contact between heatsink & cpu,gpu when taking it apart. Research - Found a better way to apply thermal past. I personally disapprove of guide on this. A small bit about the size of a grain of rice in center of cpu is plenty. Clamp the heat sinks back on. Then take it apart & check contact area. Thermal paste should have spread to about the size of a quarter.(more is better. Less then a nickel size is poor contact) possibly weak clamps. Carefully applied pressure onto the cpu & gpu, pressing them into the heatsinks before clamping heatsink clamps on. Achieved greater then quarter sized thermal past spread. Fan silent in comparison & ps3 lasted about a yr. Rarely did I ever hear the fan go to high and get loud after that. About to begin my third fix on this same ps3. One of the first 80g backwards compatible. other then those notes and that this guide was for a different model ps3 (minor differences) I liked this guide. easy to follow.

    brettgomes -

    Although the battery is described as proprietary, it looks like it is the common CR2032 lithium coin battery that is used in calculators and some computers. I haven't had to replace mine but I suspect under the heatshrink cover is a battery holder which will allow the coin battery to be removed and replaced. Then wrap with electrical tape and reinstall.

    RickP -

    I tried this with the heatgun and it ruined my PS3. The CPU and GPU are NOW RUINED!!! It did not work for and made things worst!!! I sent it to a place to get reballed and they said the HEATGUN had overheated my processor and killed them!!! So think twice about doing this. Just because it is already broken, DON'T THINK YOU CAN'T MAKE IT WORST!

    georgehollyoh -

    Why would you try it with a heat gun, no were is it mentioned to do that

    Phillip Pereira -

    There are 2 additional screws to remove , front center and front left , just behind the already marked screws.

    mikentc90 -

    As mentioned and I’ll add so detail too. If you have a model with the card readers there are two more small screws that also need to be removed before moving on to the next step.

    screech -

    2How to Delid and fix the Yellow Light of Death for good (NEC TOKIN Replacement) https://gbatemp.net/threads/how-to-delid...

    Player -

    I felt more comfortable with #2 screwdrivers.

    Philippe Morin -

  6. 6W1JbieOOEwEvj6Y

    • Levanta la carcasa superior desde su borde trasero y rótala hacia la parte frontal de la PS3.

    • Quita la cubierta superior.

    • Hay un gancho de plástico ubicado en un orificio en la esquina superior trasera derecha. Empuja con cuidado el gancho de plástico un poco desde la parte trasera de la máquina con un spudger para liberar la parte trasera derecha de la carcasa.

    Disconnect the memory card ribbon cable.

    Tobias Stockmann -

    The top would hardly budge on the left back corner and was stuck on the right back corner. There is a plastic hook that needs to be unfastened to lift the top off. It is located in a hole on the top back corner on the right hand side, so the corner straight across the on off button. Just gently push the plastic hook a bit front the rear of the machine with a spudger. It gives easily and the top will be free to lift off after that.

    cornellg -

    I can confirm on CECHH01.

    Philippe Morin -

    Some more details here as well.

    The newer model without SACD support appears to have added that clip to the back right that needs to be pressed to release the top shell.

    If equipped with the card reader you can either have to disconnect the ribbon cable or unclip the reader from the top shell after lifting it up to get finger or tool in there to push clip to side and release reader from top shell. Note: if you failed to remove the card reader screws in the previous step these clips can break.

    screech -

    The original 60GB with the CF card reader on the front has a button protruding out. This will make it difficult to remove the top. You need to unscrew the memory card reader so it can come out easily.

    Brian Caines -

    Wow, this needs more attention. This isn't explained in any disassembly guide I've seen. You also need to be cognizant of the card reader cable when you're lifting off the lid.

    SolidSonicTH -

  7. OdxmYRCnAtAtZTiC

    • Desconecta el cable de alimentación de la unidad Blu-ray de la placa madre.

    • Tira del conector hacia arriba para sacarlo de su zócalo.

    I would add… “Be careful taking these type of connectors apart” …. its easy to pull the entire thing off the motherboard and rip pads !

    The pulled pads can be replaced but its extra work you don’t need :-) and requires equipment and skill to do and cold require jumper wires.

    asears -

    Pull the cables gently, the plug will come out of the socket. The plug is encased by the socket.

    A K -

    That’s also what I did.

    Philippe Morin -

    My PS3 is the CECHL01 and I had to remove the PSU to get to the disk drive ribbon cable.

    Benjamin Burden -

    I mistakenly ripped the whole thing out... I do not know where to begin on repairing it.

    Tom Gillis -

  8. ieKbPALPyOT6aHOM

    • Levanta la unidad de Blu-ray desde el borde más cercano a la fuente de alimentación y rótalo alejándolo de la carcasa lo suficiente para poder llegar al cable plano.

  9. JrydZ5XFLxnDoEkA
    JrydZ5XFLxnDoEkA
    NRlknsmmnErk36XY
    Gf6tmmxAdjQaJtwa

    • Utiliza tus uñas para levantar la pestaña que mantiene el cable plano conectado.

    • Asegúrate de que haces palanca en la pestaña y NO en el zócalo en sí.

    • Tira del cable plano y desconéctalo.

    • Quita la unidad de Blu-ray de tu PS3.

    • Si estás cambiando la unidad de Blu-ray, utiliza el cable de alimentación de la vieja para la nueva.

    Not all systems look like this, some have tape instead of the flap.

    gatewaynomad -

    Every system that I have seen has had the ZIF connector, while some had tape over the connection as well. If your connectors are taped, be sure to remove the tape, then proceed with undoing the ZIF connector.

    Brett Hartt -

    The version 2 systems baseboard PCB started switching to the new narrow 24 pin ZIF header/ribbon and Blu-Ray drive connection.

    You should not attempt to detach the taped ribbon cable from the drive end first as described above for the older wide 60 pin ribbons. You must remove the drive and ribbon as one unit to protect the fragile ZIF sockets.

    The slimmer fragile ribbon is taped to the drive housing to afford a more secure ZIF connection. The opposite base connection is slightly under the PSU.

    continued

    shadetree -

    From continued

    One should firstly remove the PSU: Disconnect the drive power cable as described above. Unscrew the 5 (3-P1 2-P2) PSU mounting screws. Now leaving the power cables attached, lift the PSU off the power baseboard PCB pins and move over slightly to access the baseboard drive cable end ZIF. Release the ZIF latch and slide the entire (drive and ribbon) strait away from the baseboard ZIF to disconnect.

    After the complete drive/ribbon removal, you can carefully remove the restraining tape on the bottom of the drive to release the ribbon ZIF, then remove the 24 pin ribbon from the drive logic PCB.

    Install in reverse order making sure to add new tape to secure the ribbon to the drive.

    shadetree -

    I needed to remove the PSO completely to reach the baseboard drive cable end ZIF. To do that disconnect the power and data (I assume) cables and then pull the unit straight up. To longish prongs are heading straight up into it from the baseboard and it is a bit tight, so gently pull until it's clear.

    cornellg -

    If you are replacing the Blu-ray drive, you must use the same daughterboard that came with your PlayStation 3. The daughterboard is paired to the motherboard, and the Blu-ray drive will not work with a different board. -------------- I understand however my daughterboard is not on the bottom of the blu-ray drive it must be on the inside. Is there any advice out there on how I go about doing this as I am not sure what I am doing???? If someone could post a link or any tips it would be greatly appreciated.

    jimmy -

    When I received my new drive there was a sheet that said you could keep the old boards but you have to 'flash' them with the ps3's digital information. Currently trying to figure out how.....

    Cheffy -

    My CECHH01 has its blu-ray drive encased in a shield plate. Only one ribbon cable is visible. (The one we have to disconnect). Mine had some tape over it.

    Also, I used a spudger instead of my nails.

    Philippe Morin -

  10. AXRhq1bIVL3G3mP4
    AXRhq1bIVL3G3mP4
    wGXFrOW4GPjTnykd

    • Utilizando tus uñas, levanta la pestaña del conector ZIF que sujeta el cable del motor de la lente Blu-ray a la placa secundaria de control Blu-ray.

    • Tira del cable hacia arriba para quitarlo de su zócalo en la placa secundaria.

  11. 6I5IHwCwZxwZZHGZ
    6I5IHwCwZxwZZHGZ
    dLfgRIbDwGYqsrRa

    • Utilizando tus uñas, levanta la pestaña del conector ZIF que sujeta el cable de los datos de la lente Blu-ray a la placa secundaria de control Blu-ray.

    • Tira del cable para desconectarlo de su zócalo de la placa secundaria.

  12. Liljcx2KAGLHoMUq
    Liljcx2KAGLHoMUq
    JMKX24SJZkeKDobv

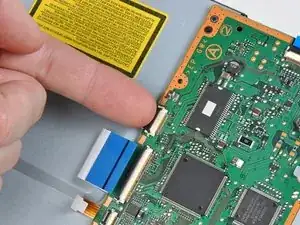

    • Utilizando tus uñas, levanta la pestaña del conector ZIF que sujeta el cable del motor de la lente Blu-ray a la placa secundaria de control Blu-ray.

    • Tira del cable hacia arriba para quitarlo de su zócalo en la placa secundaria.

  13. LG1SqxkiR4aXNUxi
    LG1SqxkiR4aXNUxi
    AGGAgMnpFSN5Gspn

    • Utilizando tus uñas, levanta la pestaña del conector ZIF que sujeta el cable del sensor de infrarrojos Blu-ray a la placa secundaria de control de Blu-ray.

    • Tira del cable para quitarlo de su zócalo en la placa secundaria.

  14. jldCQLQEBAhm1LDl
    jldCQLQEBAhm1LDl
    XeHEraHDfpmOY4g1

    • Quita los cinco tornillos Phillips de 8.4 mm que sujetan la placa de control del Blu-Ray a la unidad de Blu-ray.

    • Asegúrate de quitar también los muelles metálicos de tierra de debajo de los tornillos en las esquinas.

  15. sXXhqsX5jkiLg5Lj
    sXXhqsX5jkiLg5Lj
    qYaulkXhBBImmROO

    • Con cuidado levanta la placa secundaria desde el borde trasero.

    • Desliza la placa secundaria fuera de la carcasa superior.

    • No intentes quitar la placa secundaria todavía, ya que esta sigue conectada por un cable al lado inferior de la placa.

  16. jFFIqSPAlMyHOGZS
    jFFIqSPAlMyHOGZS
    D3mNA3uCxLTD4qB1

    • Con cuidado dale la vuelta a la placa secundaria, asegúrate de no romper ningún cable de los que están conectados.

    • Tira del cable del sensor infrarrojo y desconéctalo de su zócalo en la placa.

    • Asegúrate de que no estás tirando de los cables mientras quitas el enchufe de su zócalo.

    • Queda el Blu-ray.

    • Si estás reemplazando la unidad de Blu-ray, debes utilizar la misma placa secundaria que venía con tu PlayStation 3. La placa secundaria está emparejada a la placa base, y la unidad de Blu-ray no funcionará con una placa diferente.

Conclusión

Para volver a montar tu PlayStation 3, sigue esta guía en orden inverso, desde el final hacia el principio.
